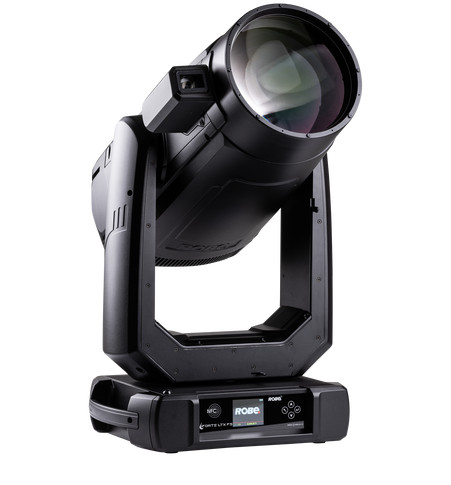

iFORTE® LTX FS
페이지 정보
본문
Source
Light source type: iSE-TE™ 1000W HP White LED Engine (Patented):
XP - Xtra Performance Engine for maximum light output and optimal colour characteristics
LED Engine output: 90.200 lm
Fixture total lumen output:
55.000 lm (integrating sphere)
43.800 lm (goniophotometer)
Colour temperature output: 6.700 K
CRI: 70, remotely selectable filters for CRI 80 and CRI 90
Illuminance: 355.000 lx @ 5 m
LED life expectancy: min. 50.000 hours
Typical lumen maintenance: L70/B50 @ 50.000 hours
Light source warranty: 4 years or 20.000 hours
Optical system
Robe’s proprietary optical design
High-efficiency 13-lens zoom optical system, ratio: 15:1
Zoom range:
3.5° - 52° (standard optical zoom)
2° - 52° (follow spot mode - using optical zoom + iris)
0.7° - 2° (long throw follow spot mode - using iris)
Output lens diameter: 245 mm
Dynamic Effects and Features
Cyan: 0 - 100%
Magenta: 0 - 100%
Yellow: 0 - 100%
Variable CTO: 3.000K - 6.700K

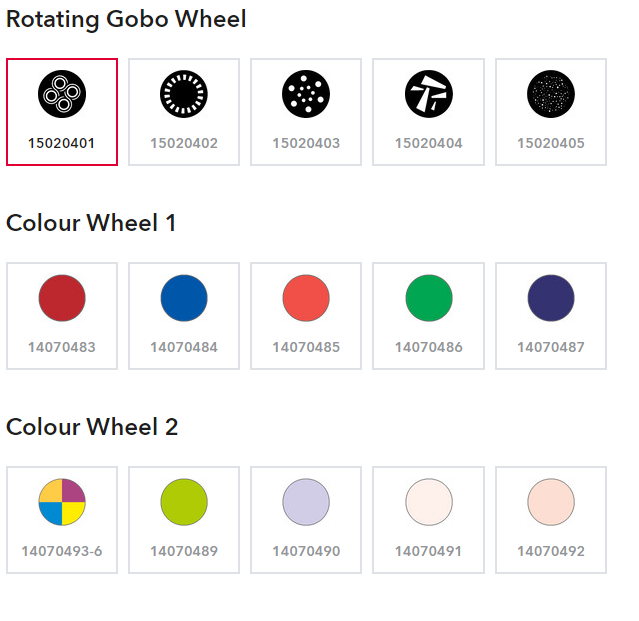

Colour Wheel 1: 5 fixed dichroic colours+ white
Colour Wheel 2: 5 fixed dichroic colours + white
Framing shutters: Patented Plano4™ framing shutters module with 4 individually positionable blades plus rotation of the complete frame system + - 60°
Rotating gobo wheel 1: 5 rotating, indexable and replaceable breakup and aerial gobos + open, patented slot & lock system
Animation wheel: 2 Aluminium animation wheels, used alone or in combination with gobos, rotating in both directions at variable speed
Prism 1: Independent 6 facet linear prism rotating in both directions at variable speed
Prism 2: Independent 6 facet circular prism rotating in both directions at variable speed
Frosts: MagFrost™ - magnetic paddle fast change system providing exchangeable frosts containing as standard a very light 1° for instant softening of the projected gobo or framing shutters, and 5° for even wash, both specifically selected for theatre and TV use
Iris: Motorized, stepless, pulse effects up to 3 Hz
XR7™ eXtreme Reach Follow Spot technology enables you to achieve unprecedented light levels, even the narrowest beam angle of 0.7 degrees
Motorized zoom and focus
Electronic strobe effect with variable speed up to 20 Hz, pre-programmed random strobe & pulse effects
High resolution electronic dimming: 0 - 100%
L3™ - (Low Light Linearity) Imperceptible 18 bit dimming for ultra smooth fade to black
Extremely quiet operation suitable for all types of production in Theatre and TV
Cpulse™ special flicker-free management for HD and UHD cameras, ready for 8K and 16K
AirLOC™ (Less Optical Cleaning) technology greatly reduces the level of airborne particles drawn over the optical elements. This increases the overall performance, light quality and time between routine cleaning and maintenance.
POLAR+™ for power saving and instant operation in extremely cold weather conditions
CamFit™ Prewired for later camera installation
Control and programming
Setting & Addressing: ROBE Navigation System 2 (RNS2)
Display: QVGA Robe touch screen with battery backup, gravitation sensor for auto screen positioning, operation memory service log with RTC, stand-alone operation with 3 editable programs (each up to 100 steps), built-in analyser for easy fault finding, NFC app controller
Protocols: USITT DMX-512, RDM, ArtNet, MA Net, MA Net2, sACN
REAP™ - Robe Ethernet Access Portal
Wireless CRMX™ technology from Lumen Radio
Epass™: Ethernet pass through switch which sustains Ethernet integrity, when the fixture has no power, to automatically maintain network connectivity
RAINS™ (Robe Automatic Ingress Neutralization System) manages humidity, temperature and pressure control using an active monitoring system to automatically remove any moisture detected within the fixture and provides constant monitoring to ensure peak performance
DMX Protocol modes: 1
Control channels: 54
Pan & Tilt resolution: 16 bit
CMY & CTO: 8 bit
Colour wheel positioning: 16 bit
Framing shutters module movement & rotation: 8 bit
Rotating gobo wheel positioning: 8 bit
Gobo indexing & rotation: 16 bit
Animation wheel: 8 bit
Animation wheel rotation: 8 bit
Iris: 16 bit
Frost: 8 bit
Zoom: 16 bit
Focus: 16 bit
Dimmer: 16 bit (internal 18 bit)
Movement
Pan movement: 540°
Tilt movement: 270°
Movement control: Standard and Speed
Controllable speed of Pan & Tilt movement
EMS™: Electronic Motion Stabilizer system for Pan & Tilt reducing beam deviation caused by truss movement or vibration (Patented)
Automatic Pan & Tilt position correction
MAPS™ - Motionless absolute positioning system for Pan and Tilt (Patented)
Rotating gobos
5x rotating glass gobos
Outside diameter: 30.8 mm
Image diameter: 25.0 mm
Thickness: 1.1 mm
Max. thickness: 3.5 mm
High temperature borofloat or better glass
Patented slot & lock system for easy replacement of gobos
Effect wheel
dual animation wheel
Material: Aluminium
Diameter: 112 mm
Can be used alone or in combination with rotating gobos
Rotating in both directions at variable speed
Framing shutters system
Shutters: 4 Blades, each with separate movement and +- 25° rotation control
Movement: Smooth with variable speed, ultra-fast for creating mid-air effects
Rotation: +- 60° of the complete framing system
Camera
Type: XNZ-L6320A
Resolution: 1920 x 1080, 16:9 Full HD (1080p) resolution support
Zoom:
32x optical zoom
32x digital zoom
Vision: Day & Night (ICR), WDR (120dB),Defog
Streaming: H.265, H.264, MJPEG Codec, Multiple streaming
Minimum illumination: 0.05 Lux
parCoat™ (particle resistant coating) unique hydrophobic and oleophobic coating helps prevent water, dirt, dust, haze and smoke from adhering to the output lens
Thermal specification
Maximum ambient temperature: 50°C (122°F)
Maximum surface temperature: 100°C (212°F)
Minimum operating temperature: -50°C (-58°F)
Total heat dissipation: max. 3200 BTU/h (calculated)
Electrical specification and connections
Power supply: Electronic auto-ranging
Input voltage range: 100-240 V, 50/60 Hz
Power consumption: max. 1250 W
Power connector in: IP65 Neutrik powerCON TRUE1
DMX and RDM data in/out: IP65 Locking 3-pin & 5-pin XLR connectors
Ethernet port out: RJ45 - camera video output
Ethernet port in/out: IP65 RJ45, for Embedded Epass™ switch 10/100 Mbps
Mechanical specification
Height: 904 mm (35.6") - head in vertical position
Width: 480 mm (18.89")
Depth: 335 mm (13.1") - head in vertical position
Weight: 49 kg (108.0 lbs)
Ingress protection rating: IP65
Light source type: iSE-TE™ 1000W HP White LED Engine (Patented):
XP - Xtra Performance Engine for maximum light output and optimal colour characteristics
LED Engine output: 90.200 lm
Fixture total lumen output:
55.000 lm (integrating sphere)
43.800 lm (goniophotometer)
Colour temperature output: 6.700 K
CRI: 70, remotely selectable filters for CRI 80 and CRI 90
Illuminance: 355.000 lx @ 5 m
LED life expectancy: min. 50.000 hours
Typical lumen maintenance: L70/B50 @ 50.000 hours
Light source warranty: 4 years or 20.000 hours
Optical system
Robe’s proprietary optical design
High-efficiency 13-lens zoom optical system, ratio: 15:1
Zoom range:
3.5° - 52° (standard optical zoom)
2° - 52° (follow spot mode - using optical zoom + iris)
0.7° - 2° (long throw follow spot mode - using iris)
Output lens diameter: 245 mm
Dynamic Effects and Features
Cyan: 0 - 100%
Magenta: 0 - 100%
Yellow: 0 - 100%
Variable CTO: 3.000K - 6.700K
Colour Wheel 1: 5 fixed dichroic colours+ white
Colour Wheel 2: 5 fixed dichroic colours + white
Framing shutters: Patented Plano4™ framing shutters module with 4 individually positionable blades plus rotation of the complete frame system + - 60°
Rotating gobo wheel 1: 5 rotating, indexable and replaceable breakup and aerial gobos + open, patented slot & lock system
Animation wheel: 2 Aluminium animation wheels, used alone or in combination with gobos, rotating in both directions at variable speed
Prism 1: Independent 6 facet linear prism rotating in both directions at variable speed
Prism 2: Independent 6 facet circular prism rotating in both directions at variable speed
Frosts: MagFrost™ - magnetic paddle fast change system providing exchangeable frosts containing as standard a very light 1° for instant softening of the projected gobo or framing shutters, and 5° for even wash, both specifically selected for theatre and TV use
Iris: Motorized, stepless, pulse effects up to 3 Hz
XR7™ eXtreme Reach Follow Spot technology enables you to achieve unprecedented light levels, even the narrowest beam angle of 0.7 degrees
Motorized zoom and focus
Electronic strobe effect with variable speed up to 20 Hz, pre-programmed random strobe & pulse effects
High resolution electronic dimming: 0 - 100%
L3™ - (Low Light Linearity) Imperceptible 18 bit dimming for ultra smooth fade to black
Extremely quiet operation suitable for all types of production in Theatre and TV
Cpulse™ special flicker-free management for HD and UHD cameras, ready for 8K and 16K
AirLOC™ (Less Optical Cleaning) technology greatly reduces the level of airborne particles drawn over the optical elements. This increases the overall performance, light quality and time between routine cleaning and maintenance.
POLAR+™ for power saving and instant operation in extremely cold weather conditions
CamFit™ Prewired for later camera installation
Control and programming
Setting & Addressing: ROBE Navigation System 2 (RNS2)
Display: QVGA Robe touch screen with battery backup, gravitation sensor for auto screen positioning, operation memory service log with RTC, stand-alone operation with 3 editable programs (each up to 100 steps), built-in analyser for easy fault finding, NFC app controller
Protocols: USITT DMX-512, RDM, ArtNet, MA Net, MA Net2, sACN
REAP™ - Robe Ethernet Access Portal
Wireless CRMX™ technology from Lumen Radio
Epass™: Ethernet pass through switch which sustains Ethernet integrity, when the fixture has no power, to automatically maintain network connectivity
RAINS™ (Robe Automatic Ingress Neutralization System) manages humidity, temperature and pressure control using an active monitoring system to automatically remove any moisture detected within the fixture and provides constant monitoring to ensure peak performance
DMX Protocol modes: 1
Control channels: 54
Pan & Tilt resolution: 16 bit
CMY & CTO: 8 bit
Colour wheel positioning: 16 bit
Framing shutters module movement & rotation: 8 bit
Rotating gobo wheel positioning: 8 bit
Gobo indexing & rotation: 16 bit
Animation wheel: 8 bit
Animation wheel rotation: 8 bit
Iris: 16 bit
Frost: 8 bit
Zoom: 16 bit
Focus: 16 bit
Dimmer: 16 bit (internal 18 bit)
Movement
Pan movement: 540°
Tilt movement: 270°
Movement control: Standard and Speed
Controllable speed of Pan & Tilt movement
EMS™: Electronic Motion Stabilizer system for Pan & Tilt reducing beam deviation caused by truss movement or vibration (Patented)
Automatic Pan & Tilt position correction
MAPS™ - Motionless absolute positioning system for Pan and Tilt (Patented)
Rotating gobos
5x rotating glass gobos
Outside diameter: 30.8 mm
Image diameter: 25.0 mm
Thickness: 1.1 mm
Max. thickness: 3.5 mm
High temperature borofloat or better glass
Patented slot & lock system for easy replacement of gobos
Effect wheel
dual animation wheel
Material: Aluminium
Diameter: 112 mm
Can be used alone or in combination with rotating gobos
Rotating in both directions at variable speed
Framing shutters system
Shutters: 4 Blades, each with separate movement and +- 25° rotation control
Movement: Smooth with variable speed, ultra-fast for creating mid-air effects
Rotation: +- 60° of the complete framing system
Camera
Type: XNZ-L6320A
Resolution: 1920 x 1080, 16:9 Full HD (1080p) resolution support
Zoom:
32x optical zoom
32x digital zoom
Vision: Day & Night (ICR), WDR (120dB),Defog
Streaming: H.265, H.264, MJPEG Codec, Multiple streaming
Minimum illumination: 0.05 Lux
parCoat™ (particle resistant coating) unique hydrophobic and oleophobic coating helps prevent water, dirt, dust, haze and smoke from adhering to the output lens
Thermal specification
Maximum ambient temperature: 50°C (122°F)
Maximum surface temperature: 100°C (212°F)
Minimum operating temperature: -50°C (-58°F)
Total heat dissipation: max. 3200 BTU/h (calculated)
Electrical specification and connections
Power supply: Electronic auto-ranging
Input voltage range: 100-240 V, 50/60 Hz
Power consumption: max. 1250 W
Power connector in: IP65 Neutrik powerCON TRUE1
DMX and RDM data in/out: IP65 Locking 3-pin & 5-pin XLR connectors
Ethernet port out: RJ45 - camera video output
Ethernet port in/out: IP65 RJ45, for Embedded Epass™ switch 10/100 Mbps
Mechanical specification
Height: 904 mm (35.6") - head in vertical position
Width: 480 mm (18.89")
Depth: 335 mm (13.1") - head in vertical position
Weight: 49 kg (108.0 lbs)
Ingress protection rating: IP65
