Source
Lamp: Discharge short arc lamp with integrated reflector

Approved model: Osram Sirius HRI 280 W RO

Lifetime: Standard mode (280 W) - 2.000 hrs, Eco mode (230 W) - 3.000 hrs

CRI: 75

CCT: 7000 K

Control: Automatic and remote on/off

Ballast: Electronic

Optical system
Robe’s proprietary optical design

Zoom range:

2.5°-10° beam application

5° – 20° spot application

Output lens diameter: 110 mm

Fixture total lumen output:

Beam mode: 9.870 lm

Spot mode: 5.150 lm

Illuminance:

Beam mode: 82.400 lx @ 20 m

Spot mode: 90.000 lx @ 5 m

Dynamic Effects and Features

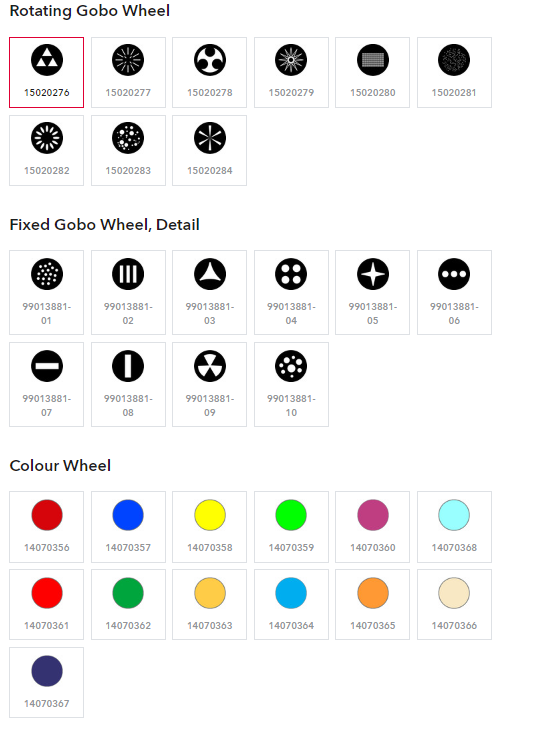

Colour wheel: 13 dichroic filters + white

Rotating Gobo wheel: 9 rotating, indexable and replaceable "SLOT&LOCK" glass gobos + open

Static Gobo wheel: 14 gobos + open

Prism 1: 8-facet circular prism rotating in both directions at different speeds

Prism 2: 6-facet linear prism rotating in both directions at different speeds

Frost: Separate, variable

Motorized zoom and focus

Pre-programmed random strobe & pulse effects

Dimmer: 0 - 100%

Control and programming
Setting & Addressing: ROBE Navigation System 2 (RNS2)

Display: QVGA Robe touch screen with battery backup, gravitation sensor for auto screen positioning, operation memory service log with RTC

Protocols: USITT DMX-512, RDM, ArtNet, MA Net, MA Net2, sACN

Wireless CRMX™ technology from Lumen Radio - on request

DMX Protocol modes: 3

Control channels: 24, 16, 30

Stand-alone operation

3-editable programs, each up to 100 steps

Pan/Tilt resolution: 8 or 16 bit

Colour wheel positioning: 8 or 16bit

Rotating gobo wheel positioning: 8 bit

Static gobo wheel positioning: 8 bit

Gobo indexing & rotation: 8 or 16bit

Frost: 8 bit

Zoom: 8 or 16bit

Focus: 8 or 16bit

Dimmer: 8 or 16bit

Movement
Pan movement: 540°

Tilt movement: 270°

Controllable speed of Pan & Tilt movement

Rotating gobos
Glass gobos: 9 rotating gobos

Outside diameter: 15.9 mm

Image diameter: 12.5 mm

Thickness: 1.1 mm

High temperature borofloat or better glass

"SLOT&LOCK" system for easy replacement of gobos

Static - beam gobos
Aluminium wheel with fixed gobos: 10 gobos & 4 beam reducers

Thermal specification
Maximum ambient temperature: 45°C (113°F)

Maximum surface temperature: 90°C (194°F)

Total heat dissipation: max. 1600 BTU/h (calculated)

Electrical specification and connections
Power supply: Electronic auto-ranging

Input voltage range: 100-240 V, 50/60 Hz

Power consumption: 470 W at 230 V / 50 Hz

Power in connector: Neutrik powerCON

DMX and RDM data in/out: Locking 3-pin & 5-pin XLR

Ethernet port in/out: RJ45

Mechanical specification
Height: 575 mm (22.6") – head in vertical position

Width: 365 mm (14.3")

Depth: 250 mm (9.8")

Weight: 15 kg (33 lbs)

Ingress protection rating: IP20
