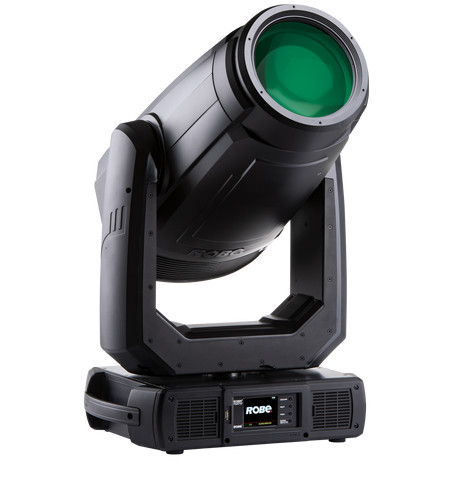

FORTE®
페이지 정보
본문
Source
Light source type: TE™ 1.000W HP White LED Engine (Patented)
HP - High Performance Engine for maximum light output and optimal colour characteristics
LED Engine output: 82.000 lm
Fixture total lumen output:
50.000 lm (integrating sphere)
40.000 lm (goniophotometer)
Colour temperature output: 6.700 K
CRI: 70, remotely selectable filters for CRI 80 and CRI 90
Illuminance: 113.000 lx @ 5 m
Light source type: TE™ 1.000W HCF White LED Engine (Patented)
HCF - High Colour Fidelity Engine for the best light quality and colour rendition
LED Engine output: 55.000 lm
Fixture total lumen output:
35.000 lm (integrating sphere)
28.000 lm (goniophotometer)
Colour temperature output: 6.000K
CRI: 96, TLCI: 97, TM-30-18 Rf: 92, TM-30-18 Rg: 99
Illuminance: 78.000 lx @ 5 m
LED life expectancy: min. 50.000 hours
Typical lumen maintenance: L70/B50 @ 50.000 hours
Light source warranty: 4 years or 20.000 hours
Optical system
Robe’s proprietary optical design
High-efficiency 13-lens zoom optical system, ratio: 11:1
Zoom range: 5° - 55°
Output lens diameter: 180 mm
Dynamic Effects and Features
Cyan: 0 - 100%
Magenta: 0 - 100%
Yellow: 0 - 100%
Variable CTO: 3.000K - 6.700K
+ - Green correction function

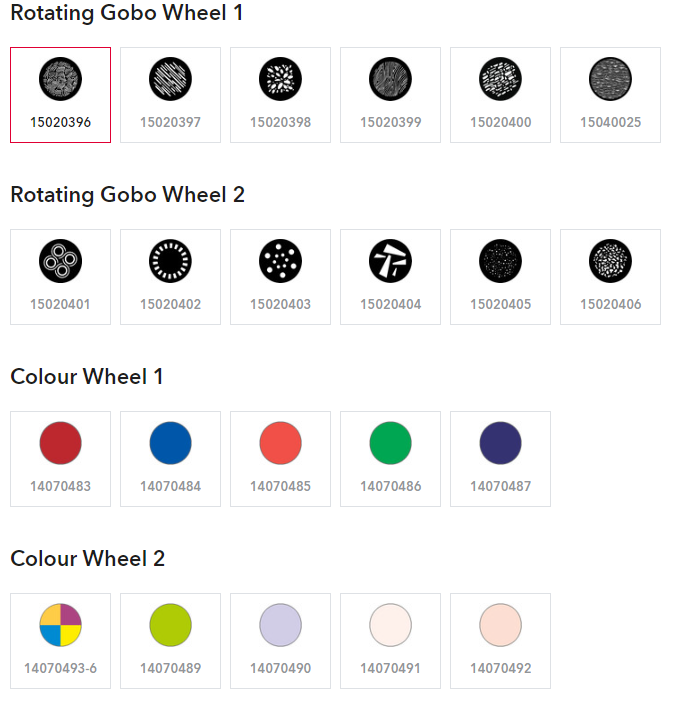

Colour Wheel 1: 5 fixed dichroic colours + white
Colour Wheel 2: 5 fixed dichroic colours + white
Framing shutters: Patented Plano4™ framing shutters module with 4 individually positionable blades plus rotation of the complete frame system + - 60°
Rotating gobo wheel 1: 6 rotating, indexable and replaceable breakup and aerial gobos + open, patented slot & lock system
Rotating gobo wheel 2: 6 rotating, indexable and replaceable breakup and aerial gobos + open, patented slot & lock system
MLP™ - Patented Multi-Level Prisms allow multiple prisms to be “stacked” while retaining individual speed and direction control. With variable shape and size it creates unlimited dynamic, multi-level flower and beam effects.
Prism 1: Independent 6 facet linear prism rotating in both directions at variable speed
Prism 2: Independent 6 facet circular prism rotating in both directions at variable speed
Animation wheel: Aluminium animation wheel, used alone or in combination with gobos, rotating in both directions at variable speed
Frosts: MagFrost™ - magnetic paddle fast change system providing exchangeable frosts containing as standard a very light 1° for instant softening of the projected gobo or framing shutters, and a medium 5° for even wash, both specifically selected for theatre and TV use
Hot-Spot: From flat field to 6:1 hot-spot (optional)
Iris: Motorized, stepless, pulse effects up to 3 Hz
Motorized zoom and focus
Electronic strobe effect with variable speed up to 20 Hz, pre-programmed random strobe & pulse effects
High resolution electronic dimming: 0 - 100%
L3™ - (Low Light Linearity) Imperceptible 18 bit dimming for ultra smooth fade to black
Extremely quiet operation suitable for all types of production in Theatre and TV
Cpulse™ special flicker-free management for HD and UHD cameras, ready for 8K and 16K
AirLOC™ (Less Optical Cleaning) technology greatly reduces the level of airborne particles drawn over the optical elements. This increases the overall performance, light quality and time between routine cleaning and maintenance.
Control and programming
Setting & Addressing: ROBE Navigation System 2 (RNS2)
Display: QVGA Robe touch screen with battery backup, gravitation sensor for auto screen positioning, operation memory service log with RTC, stand-alone operation with 3 editable programs (each up to 100 steps), built-in analyser for easy fault finding, NFC app controller
Protocols: USITT DMX-512, RDM, ArtNet, MA Net, MA Net2, sACN
REAP™ - Robe Ethernet Access Portal
Wireless CRMX™ technology from Lumen Radio - on request
Epass™: Ethernet pass through switch which sustains Ethernet integrity, when the fixture has no power, to automatically maintain network connectivity
DMX Protocol modes: 1
Control channels: 54
Pan & Tilt resolution: 16 bit
CMY & CTO: 8 bit
+ - Green correction: 8 bit
Colour wheel positioning: 16 bit
Framing shutters module movement & rotation: 8 bit
Rotating gobo wheel positioning: 8 bit
Gobo indexing & rotation: 16 bit
Animation wheel: 8 bit
Animation wheel rotation: 8 bit
Iris: 16 bit
Frost: 8 bit
Zoom: 16 bit
Focus: 16 bit
Dimmer: 16 bit (internal 18 bit)
Movement
Pan movement: 540°
Tilt movement: 270°
Movement control: Standard and Speed
Controllable speed of Pan & Tilt movement
EMS™: Electronic Motion Stabilizer system for Pan & Tilt reducing beam deviation caused by truss movement or vibration (Patented)
Automatic Pan & Tilt position correction
Rotating gobos
12x fully rotating, indexable glass gobos on 2 wheels
Outside diameter: 30.8 mm
Image diameter: 25.0 mm
Thickness: 1.1 mm
Max. thickness: 3.5 mm
High temperature borofloat or better glass
Patented slot & lock system for easy replacement of gobos
Effect wheel
Single animation wheel
Material: Aluminium
Diameter: 112 mm
Can be used alone or in combination with rotating gobos
Rotating in both directions at variable speed
Framing shutters system
Patented Plano4™ framing shutters module
Shutters: 4 Blades, each with separate movement and +- 25° rotation control
Movement: Smooth with variable speed, ultrafast for creating mid-air effects
Rotation: +- 60° of the complete framing system
Thermal specification
Maximum ambient temperature: 45 °C (113 °F)
Maximum surface temperature: 100 °C (212 °F)
Minimum operating temperature: -5 °C (23 °F)
Electrical specification and connections
Power supply: Electronic auto-ranging
Input voltage range: 100-240 V, 50/60 Hz
Power consumption: max. 1250 W
Power in connector: Neutrik powerCON TRUE1
DMX and RDM data in/out: Locking 3-pin & 5-pin XLR
Ethernet port in/out: RJ45 for Embedded Epass™ switch 10/100 Mbps
USB connector (series A) for lightmaster purposes
Mechanical specification
Height: 843 mm (33.2") - head in vertical position
Width: 483.5 mm (19")
Depth: 335 mm (13.1") - head in vertical position
Weight: 41 kg (90.4 lbs)
Ingress protection rating: IP20
Light source type: TE™ 1.000W HP White LED Engine (Patented)
HP - High Performance Engine for maximum light output and optimal colour characteristics
LED Engine output: 82.000 lm
Fixture total lumen output:
50.000 lm (integrating sphere)
40.000 lm (goniophotometer)
Colour temperature output: 6.700 K
CRI: 70, remotely selectable filters for CRI 80 and CRI 90
Illuminance: 113.000 lx @ 5 m
Light source type: TE™ 1.000W HCF White LED Engine (Patented)
HCF - High Colour Fidelity Engine for the best light quality and colour rendition
LED Engine output: 55.000 lm
Fixture total lumen output:
35.000 lm (integrating sphere)
28.000 lm (goniophotometer)
Colour temperature output: 6.000K
CRI: 96, TLCI: 97, TM-30-18 Rf: 92, TM-30-18 Rg: 99
Illuminance: 78.000 lx @ 5 m
LED life expectancy: min. 50.000 hours
Typical lumen maintenance: L70/B50 @ 50.000 hours
Light source warranty: 4 years or 20.000 hours
Optical system
Robe’s proprietary optical design
High-efficiency 13-lens zoom optical system, ratio: 11:1
Zoom range: 5° - 55°
Output lens diameter: 180 mm
Dynamic Effects and Features
Cyan: 0 - 100%
Magenta: 0 - 100%
Yellow: 0 - 100%
Variable CTO: 3.000K - 6.700K
+ - Green correction function
Colour Wheel 1: 5 fixed dichroic colours + white
Colour Wheel 2: 5 fixed dichroic colours + white
Framing shutters: Patented Plano4™ framing shutters module with 4 individually positionable blades plus rotation of the complete frame system + - 60°
Rotating gobo wheel 1: 6 rotating, indexable and replaceable breakup and aerial gobos + open, patented slot & lock system
Rotating gobo wheel 2: 6 rotating, indexable and replaceable breakup and aerial gobos + open, patented slot & lock system
MLP™ - Patented Multi-Level Prisms allow multiple prisms to be “stacked” while retaining individual speed and direction control. With variable shape and size it creates unlimited dynamic, multi-level flower and beam effects.
Prism 1: Independent 6 facet linear prism rotating in both directions at variable speed
Prism 2: Independent 6 facet circular prism rotating in both directions at variable speed
Animation wheel: Aluminium animation wheel, used alone or in combination with gobos, rotating in both directions at variable speed
Frosts: MagFrost™ - magnetic paddle fast change system providing exchangeable frosts containing as standard a very light 1° for instant softening of the projected gobo or framing shutters, and a medium 5° for even wash, both specifically selected for theatre and TV use
Hot-Spot: From flat field to 6:1 hot-spot (optional)
Iris: Motorized, stepless, pulse effects up to 3 Hz
Motorized zoom and focus
Electronic strobe effect with variable speed up to 20 Hz, pre-programmed random strobe & pulse effects
High resolution electronic dimming: 0 - 100%
L3™ - (Low Light Linearity) Imperceptible 18 bit dimming for ultra smooth fade to black
Extremely quiet operation suitable for all types of production in Theatre and TV
Cpulse™ special flicker-free management for HD and UHD cameras, ready for 8K and 16K
AirLOC™ (Less Optical Cleaning) technology greatly reduces the level of airborne particles drawn over the optical elements. This increases the overall performance, light quality and time between routine cleaning and maintenance.
Control and programming
Setting & Addressing: ROBE Navigation System 2 (RNS2)
Display: QVGA Robe touch screen with battery backup, gravitation sensor for auto screen positioning, operation memory service log with RTC, stand-alone operation with 3 editable programs (each up to 100 steps), built-in analyser for easy fault finding, NFC app controller
Protocols: USITT DMX-512, RDM, ArtNet, MA Net, MA Net2, sACN
REAP™ - Robe Ethernet Access Portal
Wireless CRMX™ technology from Lumen Radio - on request
Epass™: Ethernet pass through switch which sustains Ethernet integrity, when the fixture has no power, to automatically maintain network connectivity
DMX Protocol modes: 1
Control channels: 54
Pan & Tilt resolution: 16 bit
CMY & CTO: 8 bit
+ - Green correction: 8 bit
Colour wheel positioning: 16 bit
Framing shutters module movement & rotation: 8 bit
Rotating gobo wheel positioning: 8 bit
Gobo indexing & rotation: 16 bit
Animation wheel: 8 bit
Animation wheel rotation: 8 bit
Iris: 16 bit
Frost: 8 bit
Zoom: 16 bit
Focus: 16 bit
Dimmer: 16 bit (internal 18 bit)
Movement
Pan movement: 540°
Tilt movement: 270°
Movement control: Standard and Speed
Controllable speed of Pan & Tilt movement
EMS™: Electronic Motion Stabilizer system for Pan & Tilt reducing beam deviation caused by truss movement or vibration (Patented)
Automatic Pan & Tilt position correction
Rotating gobos
12x fully rotating, indexable glass gobos on 2 wheels
Outside diameter: 30.8 mm
Image diameter: 25.0 mm
Thickness: 1.1 mm
Max. thickness: 3.5 mm
High temperature borofloat or better glass
Patented slot & lock system for easy replacement of gobos
Effect wheel
Single animation wheel
Material: Aluminium
Diameter: 112 mm
Can be used alone or in combination with rotating gobos
Rotating in both directions at variable speed
Framing shutters system
Patented Plano4™ framing shutters module
Shutters: 4 Blades, each with separate movement and +- 25° rotation control
Movement: Smooth with variable speed, ultrafast for creating mid-air effects
Rotation: +- 60° of the complete framing system
Thermal specification
Maximum ambient temperature: 45 °C (113 °F)
Maximum surface temperature: 100 °C (212 °F)
Minimum operating temperature: -5 °C (23 °F)
Electrical specification and connections
Power supply: Electronic auto-ranging
Input voltage range: 100-240 V, 50/60 Hz
Power consumption: max. 1250 W
Power in connector: Neutrik powerCON TRUE1
DMX and RDM data in/out: Locking 3-pin & 5-pin XLR
Ethernet port in/out: RJ45 for Embedded Epass™ switch 10/100 Mbps
USB connector (series A) for lightmaster purposes
Mechanical specification
Height: 843 mm (33.2") - head in vertical position
Width: 483.5 mm (19")
Depth: 335 mm (13.1") - head in vertical position
Weight: 41 kg (90.4 lbs)
Ingress protection rating: IP20
