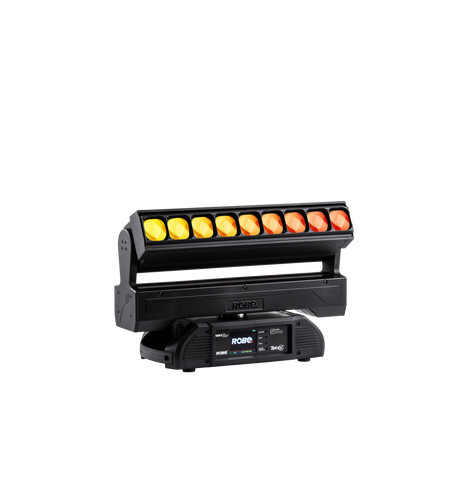

TetraX™
페이지 정보
본문
Source
Light source type: 9x 40W RGBW LED multichips
LED life expectancy: min. 50.000 hours
Typical lumen maintenance: L70/B50 @ 50.000 hours
Optical system
Robe’s proprietary optical design
Zoom range: 4°- 45°
Highly efficient component optics
Fixture total lumen output:
5.300 lm (integrating sphere)
4.225 lm (goniophotometer)
Dynamic Effects and Features
Colour mixing mode RGBW or CMY
Individual control of each RGBW pixel
Variable CCT: 2.700K - 8.000K
Tungsten lamp effect: 750W, 1.000W, 1.200W, 2.000W, 2.500W lamp emulation for whites from 2.700K to 4.200K (red shift and thermal delay)
DataSwatch™ filters: pre-programmed 237 colours and tones including most used whites 2.700K, 3.200K, 4.200K, 5.600K and 8.000K
Pre-programmed pixel effects with colour, dimming and strobe chases, waves and pulses at variable speed and direction
3x MCFE™ - Multi-Coloured Flower Effects – creating spectacular multicolour beam effects in the air rotating in both directions at variable speed (Patented)
Motorized zoom
Pre-programmed random strobe & pulse effects
Electronic strobe effect with variable speed up to 20 Hz
High resolution electronic dimming: 0 - 100%
L3™ - (Low Light Linearity) Imperceptible 18 bit dimming for ultra smooth fade to black
Control and programming
Setting & Addressing: QVGA Robe touch screen with battery backup, gravitation sensor for auto screen positioning, operation memory service log with RTC, stand-alone operation with 3 editable programs (each up to 88 steps), built-in analyser for easy fault finding
Protocols: USITT DMX-512, RDM, Art-Net, MA Net, MA Net2, sACN, Kling-Net
REAP™ - Robe Ethernet Access Portal
Wireless CRMX™ technology from Lumen Radio - on request
Epass™: Ethernet pass through switch which sustains Ethernet integrity, when the fixture has no power, to automatically maintain network connectivity
DMX Protocol modes: 6
Control channels: 41, 61, 75, 84, 88, 97
RGBW / CMY: 8 or 16 bit
Zoom: 8 or 16 bit
Dimmer: 8 or 16 bit (internal 18 bit)
Movement
Pan movement range 540° with continuous rotation control
Tilt movement: 191°
16 bit movement resolution
Controllable speed of Pan/Tilt movement
Thermal specification
Maximum ambient temperature: 40°C (104°F)
Maximum surface temperature: 70°C (158°F)
Minimum operating temperature: -5°C (23°F)
Total heat dissipation: max. 818 BTU/h (calculated)
Electrical specification and connections
Power supply: Electronic auto-ranging
Input voltage range: 100-240 V, 50/60 Hz
Power consumption: max. 320 W
Power connector in/out: Neutrik powerCON TRUE1 in/out
DMX and RDM data in/out: Locking 5-pin XLR
Ethernet port in/out: RJ45 for Embedded Epass™ switch 10/100 Mbps
Mechanical specification
Height: 368 mm (14.48”)
Width: 512 mm (20.15”)
Depth: 205 mm (8.07") - head in horizontal position
Weight: 15.7 kg (34.6 lbs)
Ingress protection rating: IP20
Light source type: 9x 40W RGBW LED multichips
LED life expectancy: min. 50.000 hours
Typical lumen maintenance: L70/B50 @ 50.000 hours
Optical system
Robe’s proprietary optical design
Zoom range: 4°- 45°
Highly efficient component optics
Fixture total lumen output:
5.300 lm (integrating sphere)
4.225 lm (goniophotometer)
Dynamic Effects and Features
Colour mixing mode RGBW or CMY
Individual control of each RGBW pixel
Variable CCT: 2.700K - 8.000K
Tungsten lamp effect: 750W, 1.000W, 1.200W, 2.000W, 2.500W lamp emulation for whites from 2.700K to 4.200K (red shift and thermal delay)
DataSwatch™ filters: pre-programmed 237 colours and tones including most used whites 2.700K, 3.200K, 4.200K, 5.600K and 8.000K
Pre-programmed pixel effects with colour, dimming and strobe chases, waves and pulses at variable speed and direction
3x MCFE™ - Multi-Coloured Flower Effects – creating spectacular multicolour beam effects in the air rotating in both directions at variable speed (Patented)
Motorized zoom
Pre-programmed random strobe & pulse effects
Electronic strobe effect with variable speed up to 20 Hz
High resolution electronic dimming: 0 - 100%
L3™ - (Low Light Linearity) Imperceptible 18 bit dimming for ultra smooth fade to black
Control and programming
Setting & Addressing: QVGA Robe touch screen with battery backup, gravitation sensor for auto screen positioning, operation memory service log with RTC, stand-alone operation with 3 editable programs (each up to 88 steps), built-in analyser for easy fault finding
Protocols: USITT DMX-512, RDM, Art-Net, MA Net, MA Net2, sACN, Kling-Net
REAP™ - Robe Ethernet Access Portal
Wireless CRMX™ technology from Lumen Radio - on request
Epass™: Ethernet pass through switch which sustains Ethernet integrity, when the fixture has no power, to automatically maintain network connectivity
DMX Protocol modes: 6
Control channels: 41, 61, 75, 84, 88, 97
RGBW / CMY: 8 or 16 bit
Zoom: 8 or 16 bit
Dimmer: 8 or 16 bit (internal 18 bit)
Movement
Pan movement range 540° with continuous rotation control
Tilt movement: 191°
16 bit movement resolution
Controllable speed of Pan/Tilt movement
Thermal specification
Maximum ambient temperature: 40°C (104°F)
Maximum surface temperature: 70°C (158°F)
Minimum operating temperature: -5°C (23°F)
Total heat dissipation: max. 818 BTU/h (calculated)
Electrical specification and connections
Power supply: Electronic auto-ranging
Input voltage range: 100-240 V, 50/60 Hz
Power consumption: max. 320 W
Power connector in/out: Neutrik powerCON TRUE1 in/out
DMX and RDM data in/out: Locking 5-pin XLR
Ethernet port in/out: RJ45 for Embedded Epass™ switch 10/100 Mbps
Mechanical specification
Height: 368 mm (14.48”)
Width: 512 mm (20.15”)
Depth: 205 mm (8.07") - head in horizontal position
Weight: 15.7 kg (34.6 lbs)
Ingress protection rating: IP20
