Source

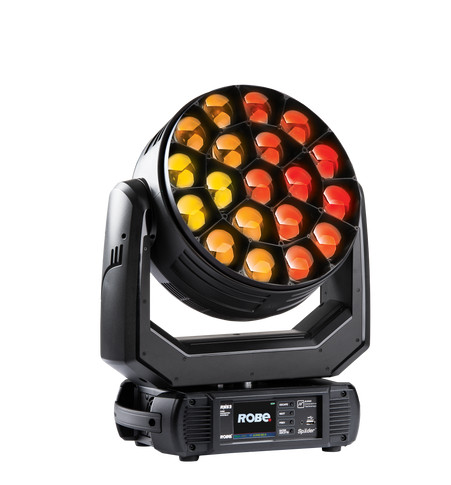

Light source type: 1x 60W RGBW and 18x 40W RGBW LED multichips

LED life expectancy: min. 50.000 hours

Typical lumen maintenance: L70/B50 @ 50.000 hours

Optical system
Robe’s proprietary optical design

High - efficiency zoom optical system, ratio 12,5:1

Zoom range: 4° - 50°

Fixture total lumen output:

13.700 lm (integrating sphere)

11.000 lm (goniophotometer)

Illuminance: 50.100 lx @ 5 m

(RLCT™) Innovative lens coating technology (Patent pending)

Dynamic Effects and Features
Colour mixing mode RGBW or CMY

Individual control of each RGBW pixel

Variable CTO: 2.700K - 8.000K

Virtual Colour Wheel: with 66 preset swatches

Tungsten lamp effect at whites: 750W, 1.000W, 1.200W, 2.000W, 2.500W lamp emulation for whites from 2.700K to 4.200K (red shift and thermal delay)

Colour rainbow effect with variable speed

Pre-programmed pixel effects with colour, dimming and strobe chases, waves and pulses at variable speed and direction

MCFE™ - Multi-Coloured Flower Effects – creating spectacular multicolour beam effects in the air rotating in both directions at variable speed (patented)

Strobe effect: variable speed (max. 20 flashes per second)

Pre-programmed random strobe & pulse effects

High resolution electronic dimming: 0 - 100%

L3™ - (Low Light Linearity) Imperceptible 18 bit dimming for ultra smooth fade to black

Control and programming
Setting & Addressing: ROBE Navigation System 2 (RNS2)

Display: QVGA Robe touch screen with battery backup, gravitation sensor for auto screen positioning, operation memory service log with RTC, stand-alone operation with 3 editable programs (each up to 100 steps), built-in analyser for easy fault finding

Protocols: USITT DMX-512, RDM, Art-Net, MA Net, MA Net2, sACN, Kling-Net

Wireless CRMX™ technology from Lumen Radio - on request

DMX Protocol modes: 10

Control channels: 49, 27, 33, 90, 27, 47, 91, 110, 104, 123

Pan/Tilt resolution: 16 bit

R,G,B,W colour mixing: 8 or 16 bit (internal 18 bit)

Zoom: 8 bit

Dimmer: 8 or 16 bit (internal 18 bit)

Movement
Pan movement: 540°

Tilt movement: 220°

Movement control: Standard and Speed

Controllable speed of Pan/Tilt movement

EMS™: Electronic Motion Stabilizer system for Pan & Tilt reducing beam deviation caused by truss movement or vibration (Patented)

Automatic Pan/Tilt position correction

Thermal specification
Maximum ambient temperature: 45 °C (113 °F)

Maximum surface temperature: 75 °C (167 °F)

Minimal operating temperature: - 5°C (23 °F)

Electrical specification and connections
Power supply: Electronic auto-ranging

Input voltage range: 100-240 V, 50/60 Hz

Power consumption: max. 660 W

Power in connector: Neutric powerCON TRUE1

DMX and RDM data in/out: Locking 3-pin & 5-pin XLR

Ethernet port in/out: RJ45

Embedded Ethernet switch 10/100 Mbps: 1 x in / 1 x out

USB connector (series A)

Mechanical specification
Height: 477 mm (18.7”)

Width: 390 mm (15.3”)

Depth: 252 mm (9.9”)

Weight: 13.3kg (29.2 lbs)

Ingress protection rating: IP20
