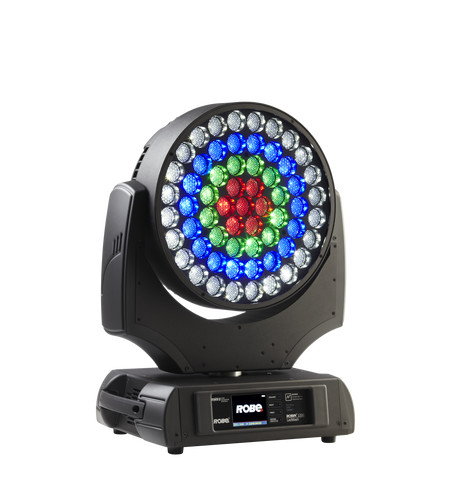

LEDWash 1200™
페이지 정보
본문
Source
Light source: 61x 15W RGBW LED multichips
Led Life Expectancy: minimum 60.000 hours
Typical Lumen Maintenance: 70% @ 60.000 hours
Optical system
Robe’s proprietary optical design
High - efficiency zoom optical system, ratio 8:1
Zoom range: 8° - 63°
Fixture total lumen output: 10.360 lm
Light output: 15.000 lx @ 5 m
Dynamic Effects and Features
Colour mixing mode RGBW or CMY
4 individually controllable LED rings
Virtual Colour Wheel: 237 colours including whites (2.700K, 3.200K, 4.200K, 5.600K and 8.000K)
Tungsten lamp effect at whites: 2.700K and 3.200K (red shift and thermal delay)
Colour rainbow effect with variable speed
Pre-programmed random strobe & pulse effects
Electronic strobe effect with variable speed up to 20 Hz
High resolution electronic dimming: 0 - 100%
Control and programming
Setting & Addressing: ROBE Navigation System 2 (RNS2)
Display: QVGA Robe touch screen with battery backup, gravitation sensor for auto screen positioning, operation memory service log with RTC, stand-alone operation with 3 editable programs (each up to 100 steps), built-in analyser for easy fault finding
Protocols: USITT DMX-512, RDM, ArtNet, MA Net, MA Net2
Wireless CRMX™ technology from Lumen Radio
6 DMX protocol modes
Control channels: 45, 21, 15, 10, 45, 37
Pan/Tilt resolution: 16 bit
RGBW or CMY: 8 or 16 bit
Zoom: 8 bit
Dimmer: 8 or 16 bit
Movement
Pan movement range 450°
Tilt movement range 300°
Automatic Pan/Tilt position correction
Thermal specification
Maximum ambient temperature: 45 °C (113 °F)
Maximum surface temperature: 80°C (176°F)
Minimum operating temperature: -5°C (23°F)
Electrical specification and connections
Power supply: Electronic auto-ranging
Input voltage range: 100-240 V, 50/60 Hz
Power consumption: Max. 680 W at 230 V / 50 Hz
AC connection: power cable with plug
DMX and RDM data in/out: Locking 3-pin & 5-pin XLR
Ethernet port in: RJ45
Mechanical specification
Height: 570 mm (22.4")
Width: 439 mm (17.3")
Depth: 268 mm (10.5")
Weight: 18.6 kg (41 lbs)
Light source: 61x 15W RGBW LED multichips
Led Life Expectancy: minimum 60.000 hours
Typical Lumen Maintenance: 70% @ 60.000 hours
Optical system
Robe’s proprietary optical design
High - efficiency zoom optical system, ratio 8:1
Zoom range: 8° - 63°
Fixture total lumen output: 10.360 lm
Light output: 15.000 lx @ 5 m
Dynamic Effects and Features
Colour mixing mode RGBW or CMY
4 individually controllable LED rings
Virtual Colour Wheel: 237 colours including whites (2.700K, 3.200K, 4.200K, 5.600K and 8.000K)
Tungsten lamp effect at whites: 2.700K and 3.200K (red shift and thermal delay)
Colour rainbow effect with variable speed
Pre-programmed random strobe & pulse effects
Electronic strobe effect with variable speed up to 20 Hz
High resolution electronic dimming: 0 - 100%
Control and programming
Setting & Addressing: ROBE Navigation System 2 (RNS2)
Display: QVGA Robe touch screen with battery backup, gravitation sensor for auto screen positioning, operation memory service log with RTC, stand-alone operation with 3 editable programs (each up to 100 steps), built-in analyser for easy fault finding
Protocols: USITT DMX-512, RDM, ArtNet, MA Net, MA Net2
Wireless CRMX™ technology from Lumen Radio
6 DMX protocol modes
Control channels: 45, 21, 15, 10, 45, 37
Pan/Tilt resolution: 16 bit
RGBW or CMY: 8 or 16 bit
Zoom: 8 bit
Dimmer: 8 or 16 bit
Movement
Pan movement range 450°
Tilt movement range 300°
Automatic Pan/Tilt position correction
Thermal specification
Maximum ambient temperature: 45 °C (113 °F)
Maximum surface temperature: 80°C (176°F)
Minimum operating temperature: -5°C (23°F)
Electrical specification and connections
Power supply: Electronic auto-ranging
Input voltage range: 100-240 V, 50/60 Hz
Power consumption: Max. 680 W at 230 V / 50 Hz
AC connection: power cable with plug
DMX and RDM data in/out: Locking 3-pin & 5-pin XLR
Ethernet port in: RJ45
Mechanical specification
Height: 570 mm (22.4")
Width: 439 mm (17.3")
Depth: 268 mm (10.5")
Weight: 18.6 kg (41 lbs)
