Source
Light source type: 7x 40W RGBW multichips

LED life expectancy: min. 50.000 hours

Typical lumen maintenance: L70/B50 @ 50.000 hours

Optical system
7x 200mm parabolic aluminium reflector with special gold-brown coating

7x half-ball diffusor dome distributing light evenly from RGBW LED source inside of the reflector

Dynamic Effects and Features
Colour mixing mode RGBW or CMY

Individual control of each RGBW pixel

Variable CTO: 2.700K - 8.000K

Virtual Colour Wheel: with 66 preset swatches

Pre-programmed pixel effects with colour, dimming and strobe chases, waves and pulses at variable speed and direction

Shutter: Electronic with variable speed strobe (max. 20 flashes per second)

Pre-programmed random strobe & pulse effects

High resolution electronic dimming: 0 - 100%

Control and programming
PATT Driver: external

Setting & Addressing: two-row LCD display & 4 control buttons

Protocols: USITT DMX-512, RDM, ArtNet, Kling-Net, sACN

Wireless CRMX™ technology from Lumen Radio

DMX Protocol modes: 6

Control channels: 13, 32, 40, 47, 53, 60

RGBW or CMY: 8 or 16 bit (internal 18 bit)

Dimmer: 8 or 16 bit (internal 18 bit)

Thermal specification
Maximum ambient temperature: 45 °C (113 °F)

Maximum surface temperature: 65 °C (149 °F)

Minimum operating temperature: -5 °C (23 °F)

Electrical specification and connections
PATT Driver:

Power supply: Electronic auto-ranging

Input voltage range: 100 - 277 V, 50/60 Hz

Power consumption: 240 W

Power in/out connector: Neutrik powerCON TRUE1 in/out

DMX and RDM data in/out: Locking 3-pin & 5-pin XLR

Embeded Ethernet switch 10/100 Mbps: 1x IN/1x Out

Ethernet port in/out: RJ45

Power and Data out: Locking 4-pin XLR (from PATT Driver to the pixelPATT)


pixelPATT:

Power and Data in: Locking 4-pin XLR

Mechanical specification
PATT Driver:

Height: 358 mm(14.1")

Width: 82 mm (3.2")

Depth: 162 mm (6.4")

Weight: 3.0 kg (6.6 lbs)

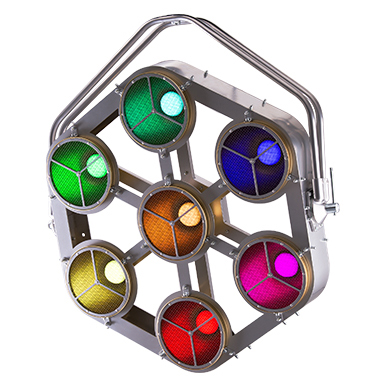

pixelPATT:

Height: 959 mm (37.75")

Width: 870 mm (34.3")

Depth: 158 mm (6.2")

Weight: 12.1 kg (26.67 lbs)
